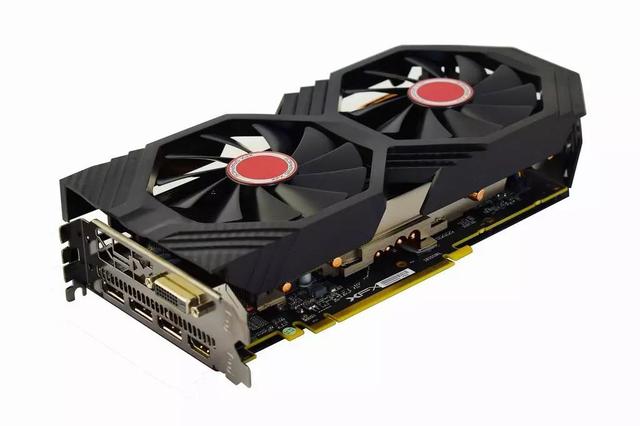

AMD Graphics Card Radeon RX 590






(3 stars by 112 users)


Radeon RX 590 is a graphics card from AMD, 1535 MHz Boost frequency looks good and should be able to handle most games, Chip area is 232 mm², The calorific value of the graphics card is lower than that of the previous generation, which should be directly related to the 12 nm process technology used on it, Although the core frequency of the graphics card is set to 1470 MHz by AMD, in actual use, the frequency can be increased by overclocking, The number of transistors is 5.7 billion, The texture unit is responsible for filling the surface of various objects in the graphics. This graphics card has 144 texture units, which fills the graphics faster, It has a good single-precision floating-point computing power of 7.2 TFLOPS, Speaking of the memory frequency, this graphics card is not very outstanding in this regard, only 2.0 Gbps, The memory bit width is 256 bit (the number of bits of data that can be transferred in one clock cycle), Radeon RX 590 has only 8 GB GDDR5 video memory, but because of its good data processing speed, the actual working ability is still good, The graphics processor used by the GPU is Polaris 30, The maximum power is 175 W (the higher the power, the greater the heat), Radeon RX 590 has 2304 stream processors (the more stream processing units, the stronger the graphics processing performance), Radeon RX 590 needs extra power, and the power supply interface is 8 Pin, The whole graphics card layout uses GCN 4.0 architecture, The number of transistors is 5.7 billion.

The Radeon RX 590 uses the same core architecture and specifications as the Radeon RX 580, but with the more advanced 12nm process, the Radeon RX 590 has a better performance, making it the strongest mid-range graphics card.

In terms of specifications, the Polaris RX 590's Polaris 30 is exactly the same as the Radeon RX 580's Polaris 20. The same GCN4 architecture includes 2,304 stream processors, 144 texture units, 32 ROPs, and 8GB of GDDR5 memory. The bit width is 256 bits.

Therefore, we can see that the public version of the Radeon RX 590 has reached 1469 MHz~1545 MHz, which has a very big improvement compared with the Radeon RX 580's 1257 MHz~1340 MHz, so that the performance is definitely better than the Radeon RX 580. We all know before that the Radeon RX 580 is comparable to the GeForce GTX 1060.

At least for now, the Radeon RX 590 is still unique in the mid-range graphics card. In the long term, AMD is also avoiding the competition with NVIDIA in the high-end graphics card field.

Supported Rendering Format
  • HDMI 4K Support
  • 4K H264 Decode
  • 4K H264 Encode
  • H265/HEVC Decode
  • H265/HEVC Encode
  • Radeon 540X,Radeon RX 590,Radeon RX 580 Parameter comparison
    Radeon 540XRadeon RX 590Radeon RX 580
    ArchitectureGCN 4.0GCN 4.0GCN 4.0
    Transistor Count2.2 billion5.7 billion5.7 billion
    Process Tech14 nm12 nm14 nm
    Die Size103 mm²232 mm²232 mm²
    Next Gen Compute Units83636
    Stream Processors51223042304
    Texture Units32144144
    Base GPU Clock1124 MHz1470 MHz1248 MHz
    Boost GPU Clock1219 MHz1535 MHz1350 MHz
    Memory Clock1.5 Gbps2.0 Gbps2.0 Gbps
    Peak SP Performance1.2 TFLOPS7.2 TFLOPS6.2 TFLOPS
    Memory Size4 GB GDDR58 GB GDDR58 GB GDDR5
    Memory Bus64 bit256 bit256 bit
    Memory Bandwidth47.00 GB/s255.0 GB/s255.0 GB/s
    TDP50 W175 W185 W
    Power Connectors-8 Pin8 Pin
    ROPs163232
    Peak Texture Fill-Rate40.2 GT/s221.2 GT/s192.0 GT/s
    Peak Pixel Fill-Rate17.0 GP/s50.12 GP/s41.69 GP/s
    GPULexaPolaris 30Polaris 20
    Tips: The above parameters are for reference only, and certain parameter values may be in error with the official figures.
    Radeon RX 590 driver installation information
    The following is driver installation information, which is very useful to help you find or install drivers for Radeon RX 590.For example: Hardware ID information item, which contains the hardware manufacturer ID and hardware ID. These two ID values are unique and will not be duplicated with other hardware. According to these two ID values, the matching driver information can be accurately found. This method is more effective than any others, and 100% correct.There are many other information items that you can use to find the driver version information and the required driver files.

    The name of the driver type in the system is: , and the drive type GUID is: .

    How to Find Drivers for Unknown Devices in Windows?
    For "unknown device" without driver installed, how to find the correct driver for this type of device? You can find the driver as follows. This is a simple and effective method.<Teach You How To Find Drivers For Unknown Devices In Your System>
    Use the search function at the top to find the driver you need

    Many hardware names are usually named after the chip model, and each chip model has its own dedicated driver, so as long as you know the chip model used by the hardware, you can find the right driver. For example, if your graphics card is named: "AMD Radeon RX 580", while actually the core chip model used is: "Radeon RX 580", then enter "Radeon RX 580" or "RX 580" to find the driver.

    If you have a laptop or an all-in-one PC, you can also use the product name to search, and then go to the download page which has all the drivers for this machine (including: graphics card, network card, sound card, etc.). For example, if your laptop product name is: "Dell A6-9220e Inspiron Flagship", then type "Dell A6-9220e" to find all the drivers for this laptop.

    Search steps:

    1. Enter a keyword in the input box and click the "Search" button

    2. In the query results, find the driver file you need, and click the download button
